Opisy maszyn wykonujących (grooving)

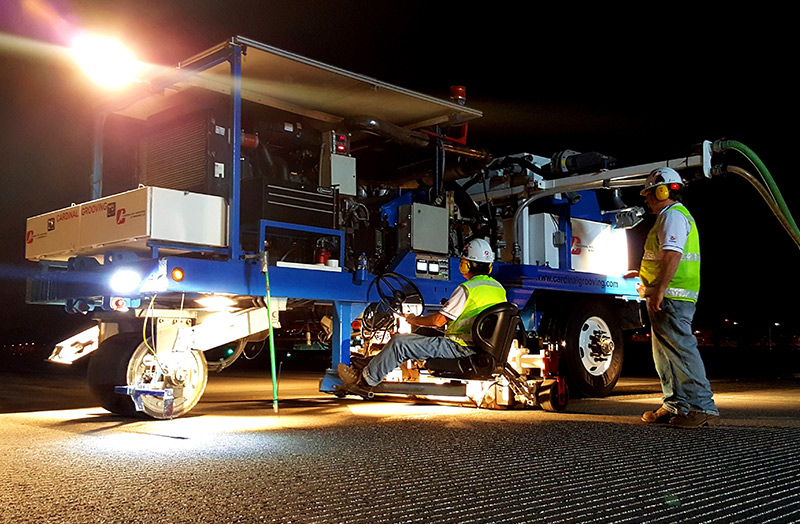

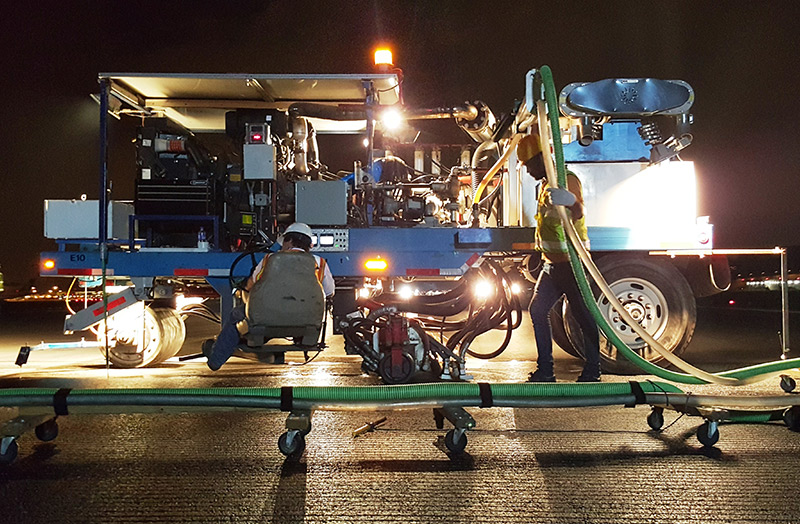

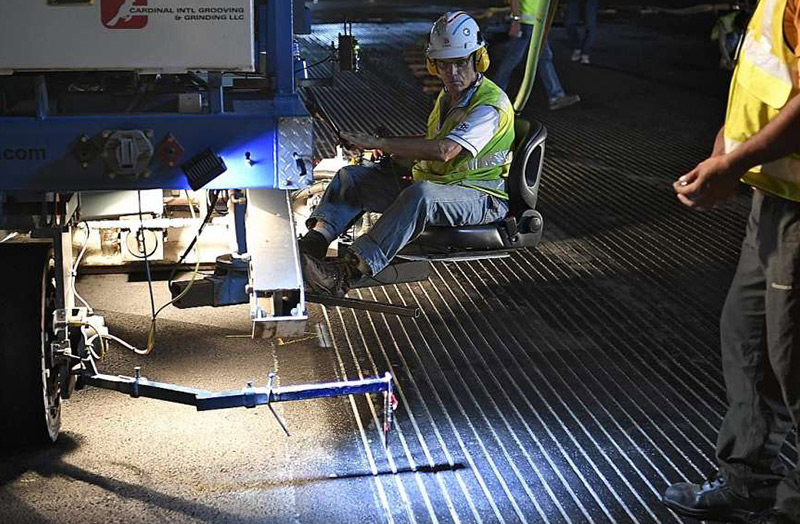

Cardinal Overseas Safe-T-Groover
Built in house, this machine has one independent hydraulically controlled cutting head with an on board vacuum system capable of cutting a swath approximately 1,4 meters wide in a single pass. The machine is powered by a Deutz engine of 402HP generating approximately 1,200 foot pounds of torque. The cutting head, mounted with approximately 38 diamond impregnated saw blades (25 for trapezoidal grooving) to match the type of material and aggregate being cut, is hydraulically controlled with two Sauer Sundstrand motors to match blade speed to cutting requirements producing the smoothest grooves possible. The machine has a Sonic Air high capacity blower to vacuum up the majority of the slurry, capable of 2,250 cfm at eight inches of mercury. It uses a three inch positive displacement pump to remove the slurry from the on board cyclone separator.
